N-Chassis: The untold story

May 21, 2025NUEN MOTO0 comments

When people first lay eyes on the N1-S, they usually say something like, “It looks like it flew in from the future.”

But what most don’t know is — that futuristic vibe comes from the unique N1 frame, crafted by the NUEN MOTO team through countless sleepless nights and enough layout debates to crash a group chat.

If the bike were a body, then the frame would be its spine. And with the N1-S, this “spine” had to be more than just strong and well-structured — it had to look good doing it.

This is the behind-the-scenes story of how the N1 chassis was designed not just to perform, but to define the very spirit of NUEN MOTO.

DEFINING THE BRIEF

Before putting pen to paper, the team sat down and asked themselves some big questions:
What does an ideal high-performance electric motorcycle frame actually look like? What exactly does it need to do? And — how can we make it unmistakably NUEN MOTO?

First, the functional must-haves:

Lightweight — because a heavy frame kills top speed, acceleration, and range.
Strong — the frame holds everything else together, so it needs to take the load.
Durable — whether it’s cruising at 40km/h or tearing off-road at 100km/h, the frame has to hold up.

Then come the production and future-proofing considerations:

Modular design for easy customization and upgrades.
Mass production-friendly to keep costs under control.
Easy to assemble and maintain — both on the line and in the garage.

And finally, to turn a good design into a great one, the frame needed two more things:

Fit for the Southeast Asian physique — because NUEN MOTO was born here, and this is where the N1-S had to win hearts first.
Aesthetically NUEN — simple, functional, timeless, with a CNC-machined flair only our team could deliver.

HOW WE APPROACHED IT

Once the team locked in the design brief, the next steps became clear:

✅ Function first
✅ Form follows function
✅ Style comes after

Instead of drawing a beautiful frame and then figuring out where to cram all the parts, we flipped the process.
We asked: If performance is all that matters, where should each component go?
And from that starting point — battery, motor, drivetrain, rider position — the frame began to take shape around the answers.

This “form follows function” approach gave the N1 frame not only long-term adaptability but also a kind of timeless, grounded aesthetic.
With tech evolving fast, we knew things would change — but instead of rebuilding from scratch each time, this frame could evolve with subtle, intentional tweaks.

DESIGN INSPIRATIONS

Of course, the N1 didn’t appear out of thin air. Great designs often share DNA with those that came before — and our moodboard quickly filled up with personal favorites and timeless icons:

Vitsoe Shelving – modular, flexible, easy to upgrade.
Dieter Rams & Braun – where function dictates form.
80s–90s Racing Bikes – raw performance, no frills.
The NU-E Concept – our original electric prototype that planted NUEN’s first design seed.

THE DESIGN JOURNEY

With the brief locked in, the first digital sketches emerged from Design Director Gia Nguyễn and Lead Designer Dương Khánh.

Step one: layout — mapping where each core component goes.
The battery, motor, drivetrain, rider’s seat, and ergonomic angles had to all work in harmony.
But every change in layout meant a change in everything else — the angles, weld points, weight distribution… rinse and repeat.

And repeat we did — over 50 layout revisions.

The first 3D model, shaped around our component layout, locked in the Rake angle at 24.5°, setting the tone for an urban scrambler silhouette.

The engineering team — Trưởng Nguyễn and Hiệp Nguyễn — got involved, refining the 3D models and solidifying the now-iconic “N-frame” structure, final wheelbase, and other core specs.

And because the frame wasn’t just a hidden skeleton — it was the look of the bike — every design decision had to balance function and flair.
Disagreements? Oh, plenty. But every heated debate made the design better.

Somewhere around prototype number six, we started to see the light.

The layout clicked.
The rider-bike proportions made sense.
We stopped “cramming things in” and started making them fit. What we had:

A frame that fit Asian riders like a glove
Structurally sound enough to hug a massive battery
So clean it barely needed plastic panels
Modular and upgradable without redesigning from scratch
Easy to assemble and service with minimal tools

MANUFACTURING: WHEN CAD MEETS REALITY

Everyone was feeling good staring at that CAD file.
Perfect joints. Clean curves. A digital dream.
We thought: “This is it — one and done.”

Then we cut the first aluminum piece. Turns out, what looks good on screen can make CNC machines cry.

Custom parts, complex angles, deep pockets — we needed special tools, one-off jigs, and nerves of steel. It was like building IKEA furniture with no manual… and half the screws.

Designs were stunning. Machines weren’t amused. Engineers? Slightly panicked.

But instead of finger-pointing, the team pulled together.
We got back into the shop, dissected every issue, and adjusted designs to meet the messy beauty of real-world machining — without losing our design soul.

Late nights at the workshop, holding parts, testing jigs, babysitting cuts — it felt like a live-action engineering show.

And once again, reality taught us a lesson we’ll never forget:
“Good design is one thing. Bringing it to life is a whole other beast.”

THE RESULT

After endless loops of testing, tweaking, and staring into aluminum shavings — the N1 frame was born. And it was everything we hoped for (and more).

Technically speaking, it nailed the brief:

Rigid and reliable under heavy loads, high speeds, and tight corners
Lightweight aluminum for agile handling without feeling floaty
Machining- and assembly-friendly, prepped for mass production without compromise

Design-wise, it became a modular system:

Swappable tails, drivetrains, swingarms, motors — we could create entire new bike lines from this one frame
Versatile enough for commuting, touring, even racing builds

And aesthetically? This is where we’re most proud:

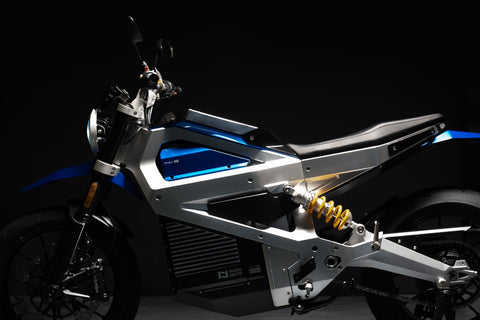

Exo-skeleton style — the frame is the exterior
Every cut, joint, and angle was treated like a luxury product: bold, precise, refine.
And if you look closely, you’ll find the subtle silhouette of the letter “N” — a quiet reminder that this is a NUEN MOTO original

The N1 frame launched with the N1-S — but its journey doesn’t end there.
With its unique structure and future-ready design, we’ve officially patented it as the foundation for a whole new era of NUEN bikes:

From high-performance machines for speed lovers, to practical yet stunning touring builds, even wild futuristic concepts.
Why not?

After all, this is just the beginning.
