N1-S: NEW DEFINITION OF PREMIUM DESIGN ON AN ELECTRIC MOTORCYCLE
The motorcycle's design is inspired by the artistic Retro-Futurism style, streamlined with Minimalism, and optimized for modularity following the Brutalism philosophy. The N1-S is not just an emotional mode of transportation but also a precision-engineered masterpiece.
Refined, sharp structure: Every line is designed to be minimalist yet not simplistic, creating an elegant and powerful aesthetic.
Advanced technology, optimized experience: Engineered to meet the highest expectations, delivering superior performance and a smooth riding experience.
Connectivity & personalization: Built for those who seek uniqueness, expressing a modern and sophisticated lifestyle.
N1-S UNIQUE SOUND
IMPRESSIVE RIDING EXPERIENCE
Robust frame, sporty motorcycle structure: Designed with a lightweight yet rigid aluminum alloy frame, ensuring stability and balance at all speeds.
Powerful engine, instant acceleration: High-performance motor delivers impressive torque, providing a sporty and exhilarating riding experience.
Premium braking and suspension system: Front and rear disc brakes combined with an adjustable suspension system for optimal control on all terrains.
Low center of gravity, superior cornering ability: Engineered for maximum agility in turns, offering a solid and confident riding feel akin to a high-performance motorcycle.

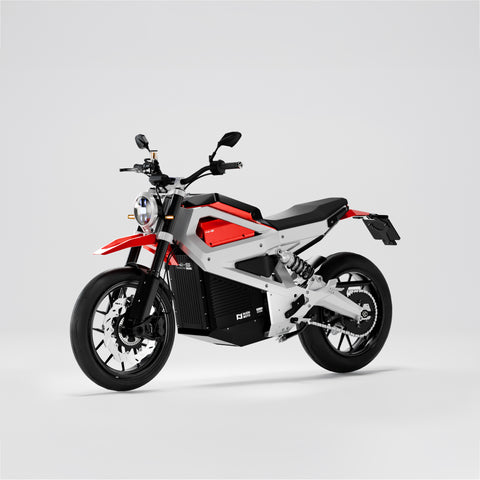

N1-S SIGNATURE EDITION
N1-S DETAILS

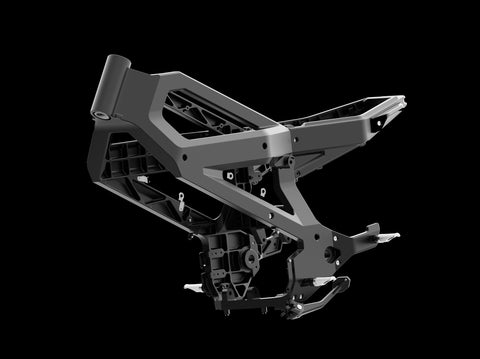

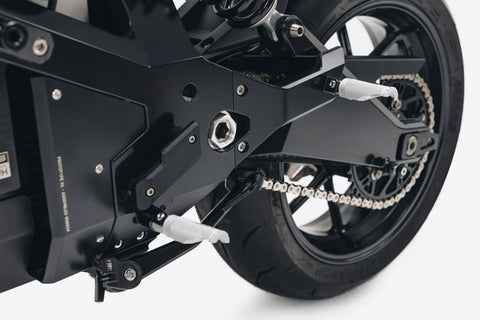

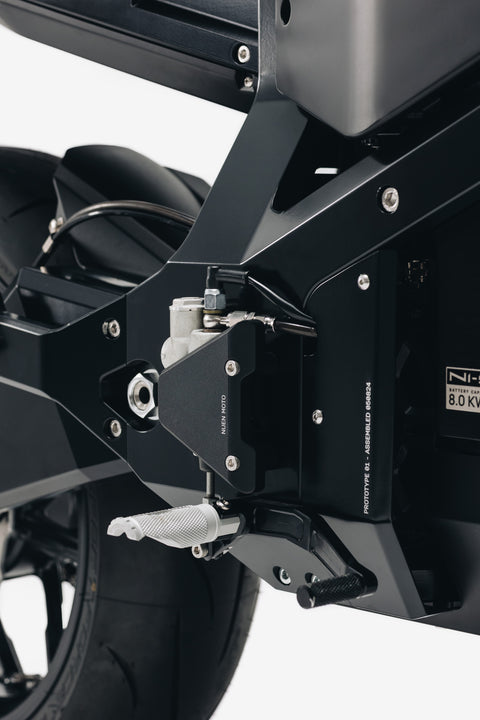

N-CHASSIS DESIGN
The N-CHASSIS proprietary frame on the N1-S blends cutting-edge aesthetics with structural durability, making its debut in the electric motorcycle world.
Unique Construction – Integrated Body & Frame
Maximum Rigidity: The exo-skeleton structure enhances durability and load resistance, optimized for high-speed performance and rough terrains.
Superior Stability in Motion & Cornering: This frame ensures the bike maintains perfect balance, even at high speeds or during sharp turns.
High Battery Load Capacity: Designed to maximize space and weight distribution for outstanding riding performance.
Versatile Terrain Adaptability: Whether in urban settings or challenging roads, the N1-S remains solid and highly maneuverable.

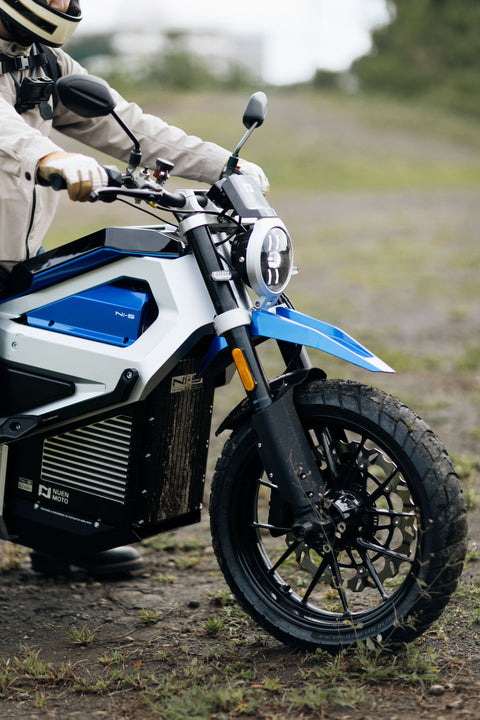

DESIGNED IN THE CITY, BUT NOT CONFINED TO IT

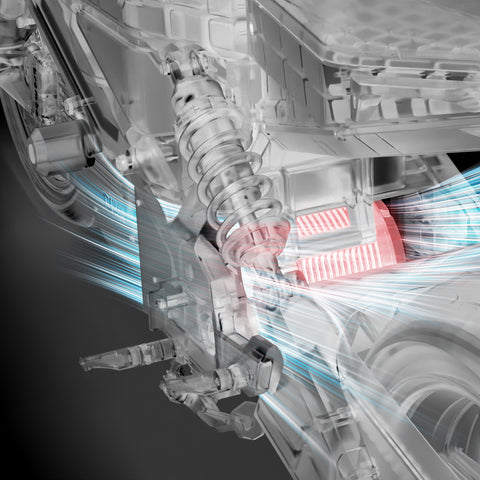

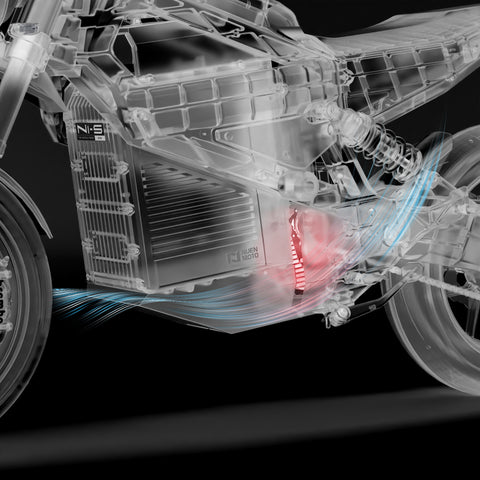

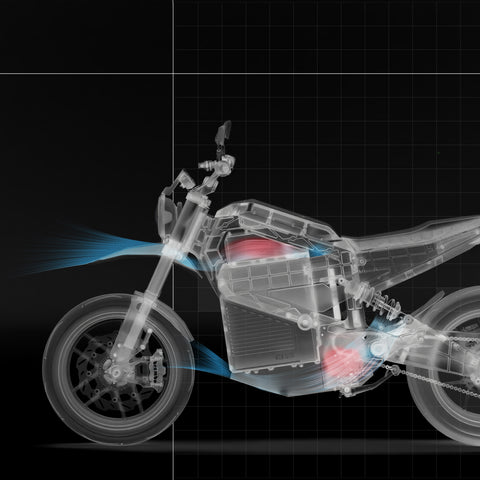

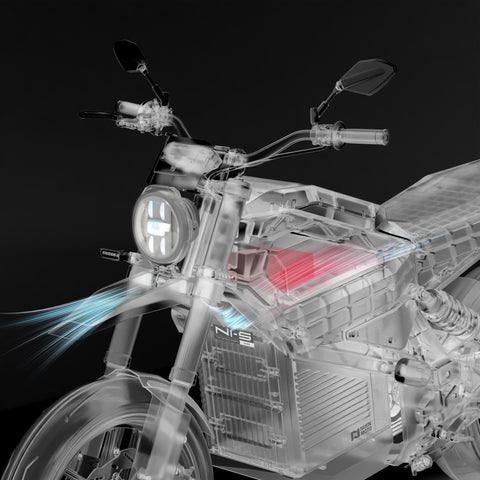

EFFECTIVE HEAT DISSIPATION DESIGN

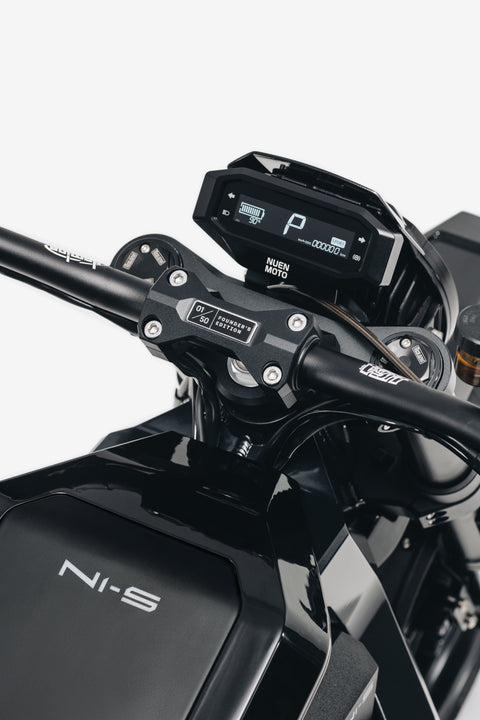

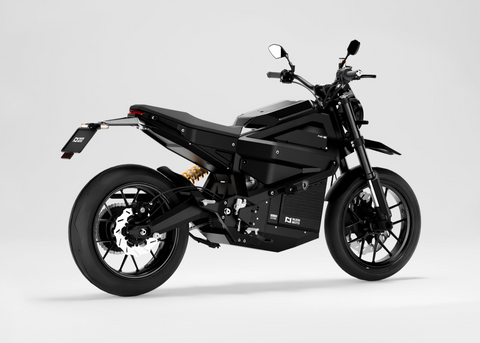

N1-S FOUNDER EDITION
TECHNOLOGY
More than just a means of transportation, the N1-S sets new standards in the field of electric motorcycles, while showcasing the perfect fusion of sophisticated design and technological innovation.
REGEN BRAKE
The technology uses an electric system and motor to convert kinetic energy during braking into stored energy, helping to save energy, increase traction, and reduce stress on the mechanical brakes, thereby enhancing the longevity and performance of the braking system.
SUSPENSION SYSTEM
The suspension system of the N1-S includes upside-down forks at the front and a mono shock at the rear, ensuring a smooth ride across all terrains.
CRUISE CONTROL
The Cruise Control feature on the N1-S allows the motorcycle to maintain the desired speed without the need to keep the throttle engaged.
03 RIDE MODES
The N1-S offers three riding modes customized to suit the conditions and user preferences: Rain (speed limited to 55 km/h), Street (speed limited to 90 km/h), and Sport (speed limited to 130 km/h), providing flexibility in every riding situation.
FAQs
MOTOR: 72V AIR COOLED
HORSE POWER: 32HP
MAX SPEED: 130KM/H
CONTINUOUS POWER: 12 KW
MAXIMUM POWER: 24 KW
MAXIMUM TURNOVER: 9000 RPM
TORQUE: 190 Nm AT MOTOR

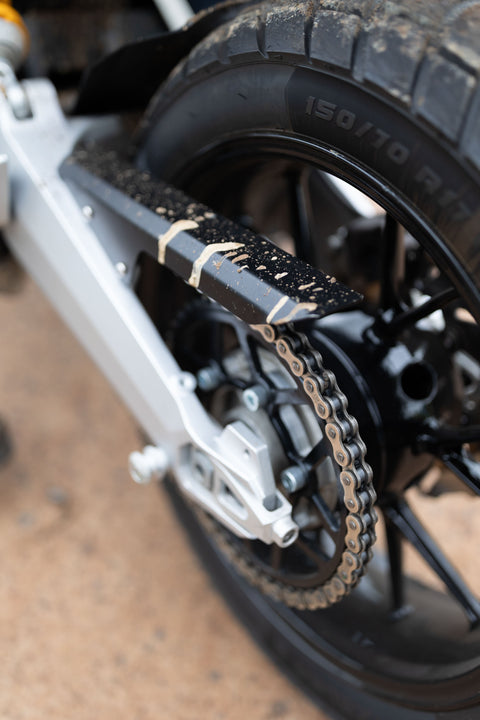

DRIVE TRAIN: DID 520 O-RING CHAIN, STEEL SPEAR
BATTERY SYSTEM
CAPACITY: 8 KWH
DISTANCE: 200-240 KM, DEPENDING ON SPEED AND DRIVING
ONBOARD CHARGER: 2.1 KW, 220V
CHARGE TIME 0-100%: 4 HRS
CHARGE TIME 20-80%: 2.5 HRS
SENSORS: TEMPERATURE, PRESSURE
BRAKE SYSTEM: J.JUAN/ BREMBO
FRONT BRAKE: RADIAL 4-PISTON, 340 MM DISC
REAR BRAKE: FLOATING 1-PISTON, 260 MM DISC
BRAKE LEVER: INTEGRATED OIL TANK, 16 MM
BRAKE PEDAL: INTEGRATED OIL TANK, 12.7 MM
ABS: BOSCH
SUSPENSION SYSTEM: OEM/OHLINS
FRONT FORK: UPSIDE-DOWN, DIAMETER 41 MM, TRAVEL 150 MM

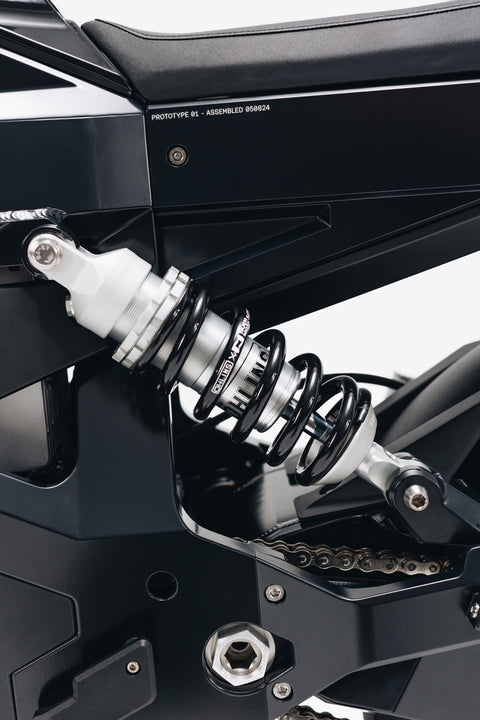

REAR SHOCK: MONOSHOCK, LENGTH 296 MM
WHEELS: CAST ALUMINUM, TUBELESS.
FRONT: 120-60/17, DUNLOP/ASPIRA
REAR: 160-60/17, DUNLOP/ASPIRA
DIMENSIONS & WEIGHT
RAKE ANGLE: 24.5 DEGREES
WHEEL CENTER LENGTH: 1500 MM
SEAT HEIGHT: 790 MM
GROUND CLEARANCE: 250 MM
WEIGHT: 175 KG
FRAME: CAST ALUMINUM
- Using the Regenerating Brake technology, the brakes utilize an electric system and motor to convert kinetic energy into stored energy, helping to save more energy. Additionally, it helps reduce the load on mechanical brake components due to friction, reducing heat and increasing the durability of the mechanical brakes.
- The suspension system includes upside-down front shock absorbers and a Mono shock rear shock absorber. In addition, the Founder's Edition model is equipped with Ohlins front/rear shock absorber kit
and Brembo front/rear brakes to optimize the driver's experience and enhance safety features.
- The ABS dual-channel braking system.
- The battery system of N1-S is currently one of the safest battery systems designed in its segment. The entire system is protected by 5 safety layers
The N1-S meets the IP67 waterproof standard, allowing the vehicle to operate steadily in water up to 0.5 meters deep for 30 minutes.
Battery:

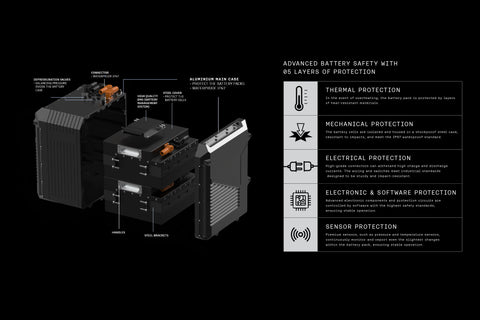

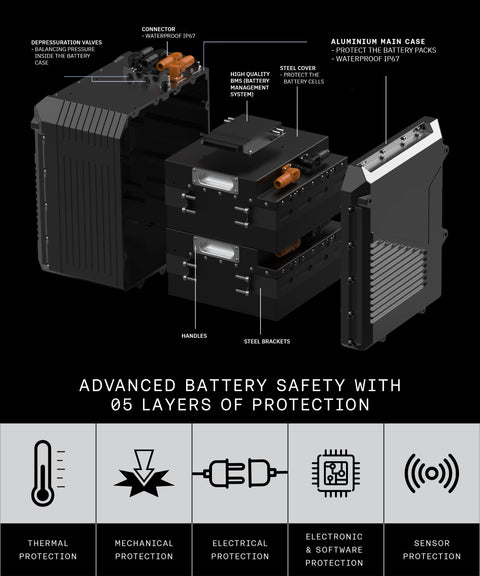

The battery system of N1-S is currently one of the safest battery systems designed in its segment. The entire system is protected by 5 safety layers:
- Thermal protection: Protects against overheating, the battery pack is shielded by heat-resistant materials and heat generated is quickly dissipated through the aluminum casing. The design is optimized for cooling with air circulation.
- Mechanical protection: Battery cells are isolated, housed in steel casings, protective circuitry is external, and everything is shielded in a premium aluminum casing. It features shock resistance, impact protection, and IP67 water resistance. The N1-S battery pack is also equipped with a pressure relief valve to ensure stable pressure inside the battery casing under harsh operating conditions.
- Electrical protection: The connector caps can withstand high charging and discharging currents along with a tidy design of electrical wires and industrial-grade switches to prevent impact damage.
- Electronic & Software protection: The highest-grade electronic components and battery protection circuits on the market are controlled and managed by software with the highest safety standards.
- Sensor protection: High-quality sensors like pressure and temperature sensors continuously operate to provide information on the slightest changes in the battery pack, ensuring optimal system operation.
- The charging system is equipped with auto cut-off technology when fully charged (2 layers of protection from the battery and charger). Especially, the system only allows charging under safe conditions such as battery temperature, charging current meeting safety requirements, and overcurrent protection. The system automatically reduces charging current when the battery is nearly full to protect the battery.

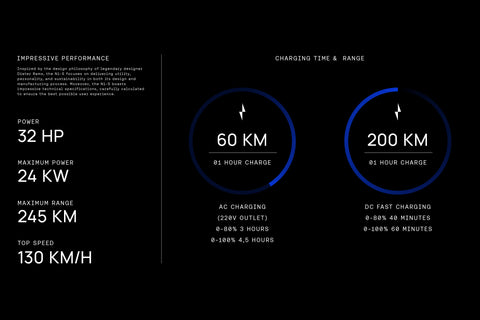

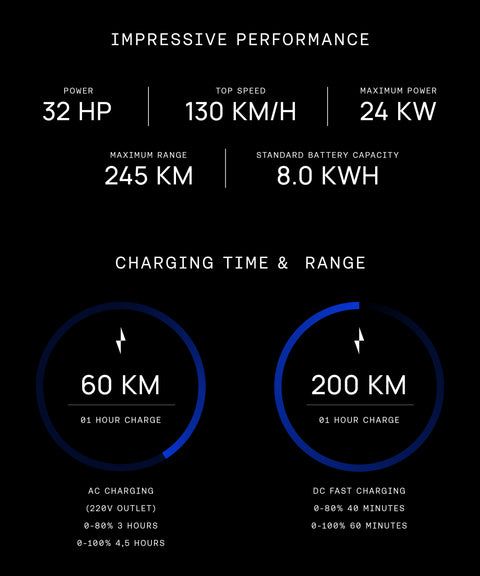

Charging time:
- Standard full charge takes about
4.5 hours using household electrical system.
- Specialized DC charging:
- 0-80%: about 40 minutes
- 0-100%: about 60 minutes
Charging stations:
- Charging using household electrical system at home.
- Specialized DC charging stations will be located at NUEN MOTO showroom. Address: 11, Street 10, An Loi Dong Ward, Thu Duc City, Ho Chi Minh City.
- In the future, the NUEN MOTO charging station system will be built and developed to meet customers' usage needs in the most convenient way.
Customers who own an N1-S electric motorcycle will also have to pay similar expenses to those of gasoline-powered vehicles. The main difference is that maintaining an electric motorcycle will be more cost-effective and economical.
Expenses include:
- Battery charging fees
- Maintenance and repair fees.
The expected standard warranty of the N1-S electric motorbike will include:
- 5 year warranty, free repair, for battery pack.
- 2 year warranty, for vehicles including all details except battery pack.
- Details of the warranty program will be updated in the near future.
